Downloads
Data sheets and documents
Current documents for our vacuum tube lifters and lifting systems. Files are added here as they are issued; documents not yet posted here can be requested through the form, with the model and market stated. Start from the vacuum tube lifter range if you are looking for a specific series.
Overview
Catalogue
The catalogue values for every series are given in the data sheets below.
Data sheets
Model data sheets
Each data sheet is a one-page PDF with the catalogue values of the series, dated and versioned; the configuration for your load is confirmed in the quotation. A two-page manual handling risk assessment template is also available; how to use it is on manual handling risk assessment example. The maintenance checklist is a printable sheet of the daily pre-use and weekly checks, compiled from industry practice.
| Series | Covers | File |
|---|---|---|
| ESL-SG single-handle | ESL-SG120/22 to 180/30, 35–80 kg | Download PDF |

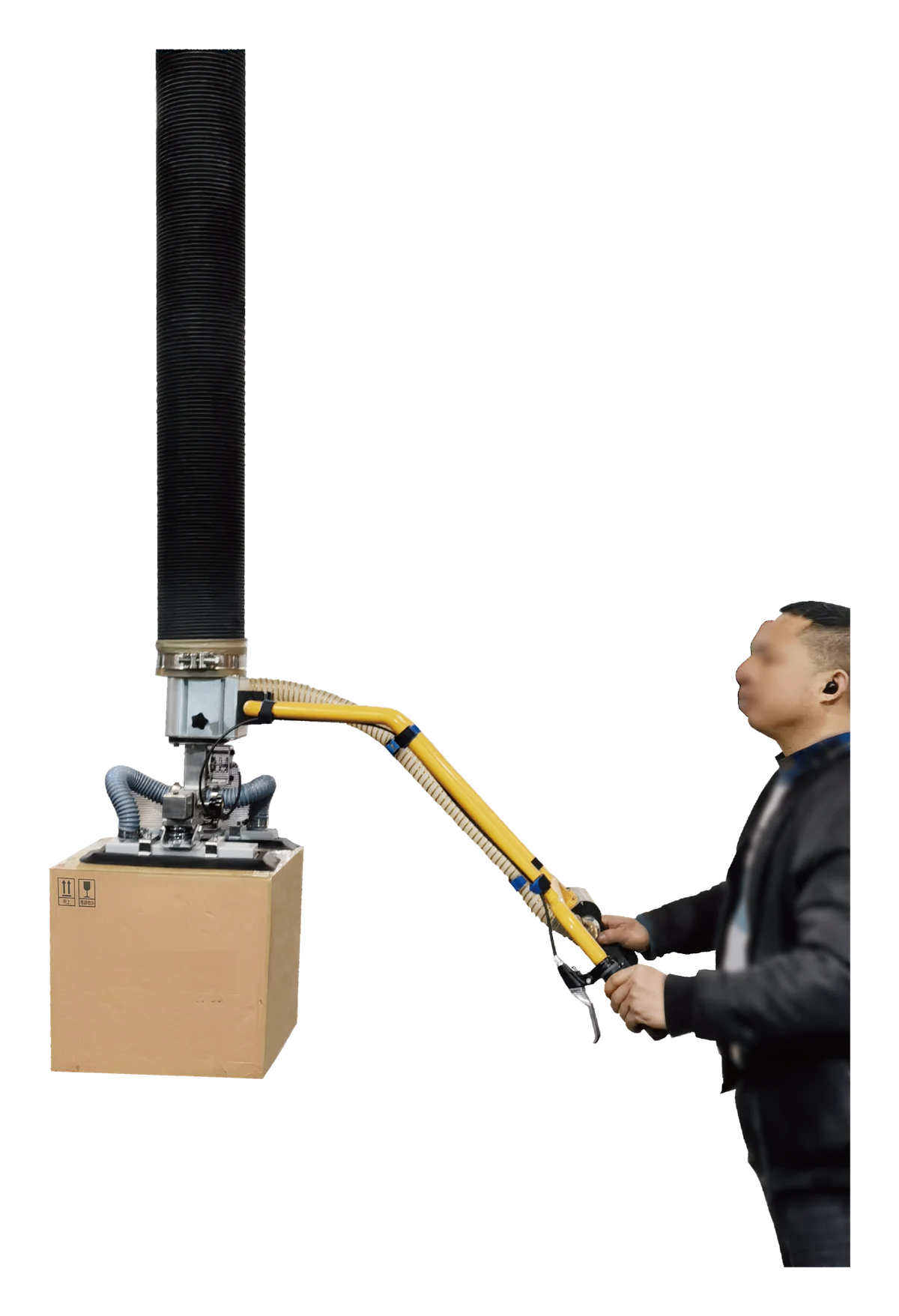

| ESL-MD two-handle | ESL-MD140/22 to 300/50, 45–200 kg | Download PDF |
| ESM compact | ESM25 and ESM35, 25–35 kg | Download PDF |
| MD / AD mobile | MD-ESM, MD-SG, AD-ESM, AD-SKG, 45–60 kg | Download PDF |
| WJC pillar jib crane | 125 and 250 kg classes | Download PDF |
| AM aluminium rail | AM150 and AM250 | Download PDF |
- am-rail-data-sheet-v1.pdf Download PDF
- esl-md-data-sheet-v1.pdf Download PDF
- esl-sg-data-sheet-v1.pdf Download PDF
- esm-data-sheet-v1.pdf Download PDF
- maintenance-checklist-v1.pdf Download PDF
- manual-handling-risk-assessment-template-v1.pdf Download PDF
- md-ad-mobile-data-sheet-v1.pdf Download PDF
- wjc-data-sheet-v1.pdf Download PDF
On request
Documents on request
Our vacuum tube lifters are CE marked, with Attestation of Conformity No. CE-1629-01-011123 (CGS Test, valid to 2028) available on request. For any other document, name the model and the destination; the quotation lists the ones we supply for that order. The market-by-market document checklist sits on factory and documents, and which standards apply is covered on the standards page.
Request a document
Use the enquiry form, state the series or model and the destination country, and name the document you need; we reply by email with the documents available for that model and market. Read more about Cowest Machinery.
